Giftec Leopard series Single Pass Printer
- PRINT YOUR IMAGINATION/ EMPOWER YOUR BUSINESS
Super Multifunctional
Giftec Leopard-S630 is the idealest option for fast speed, and high-volume packaging printing solution, the automatic integrated friction feeder allows less labour intervene, time-saving and cost-saving.
Optimal for printing Corrugated boxes, catons, handbags, packaging boxes, brochures, booklet, labels, cards, pizza box, shopping bags etc…
Empower your business
- Printing cost as low as 0.09~0.15$/ sqm
- Simplified operation, auto feeding and printing
- Longer printhead life, industrial HP pagewide printhead
- Easier maintenance, environmentally friendly water-based ink
- Save time and labor cost, automatic belt conveyor with vacuum table
- More flexible, size customization available, to meet the demands of your small or large batch production, without complicated platemaking process
- On-demand printing/ PRINT YOUR IMAGINATION
Leopard-S630
Single Pass Printer
Different from traditional offset printing, digital printing can print without plate and engraving.
- 1 person to operate, no technical skill needed.
- Easy for one-piece or mass-production printing, with complicated colorful designs at will.
- Infrared sensor, help to locate incoming products and print at an accurate location easily.
Change Your BUSINESS
Opportunities & Applications
Change Your BUSINESS
Product Details
Change Your BUSINESS

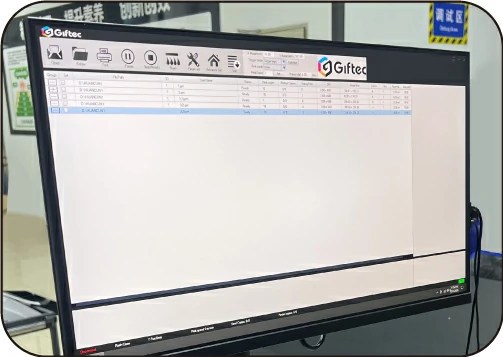

Simple operation
Giftec upgraded Control software & RIP color management all in one output software, intelligent color management, accurate control, good color reduction, simlpe and clear interface, easy human-machine interaction and simple operation.
Design Pattern
Proper placement position
Finshed products
Change Your BUSINESS
Print cost analysis
| Picture size | 255 x 102 | 75 x 54 | 69 x 48 | 181 x 153 |
| Unit | mm | mm | mm | mm |
| Ink consumption | 0.37 | 0.012 | 0.01 | 0.16 |
| Unit | ml | ml | ml | ml |
| Ink used | dye ink | dye ink | dye ink | dye ink |
| Printing cost | 0.007215 USD | 0.000234 USD | 0.000195 USD | 0.00312 USD |
Change Your BUSINESS
Product details
Touch screen panel
- Touch screen panel for easy operation, adjustable speed from 0 to 40m/min.
- Upgraded software pre-installed, integrated computer/ with printer for user-friendly operation
HP widepage industrial printheads
- Advanced thermal foaming bubble-inkjet technology
- 1~3pcs * HP widepage industrial printheads (bigger size customization support)
Laser alignment
- Red light laser aligment for media position locating easily.
- Easier to identify X and Y axis positions.
Vaccum flatbed
- 500W high-power independent motor for suction platform, better adsorb soft products well on the flatbed, not easy to damage the print head.
Ink supply system
- Sub-ink tank CISS ink supply system, more stable and less easy to cause bubble in the printheads.
- For better ink fluency and stable printing.

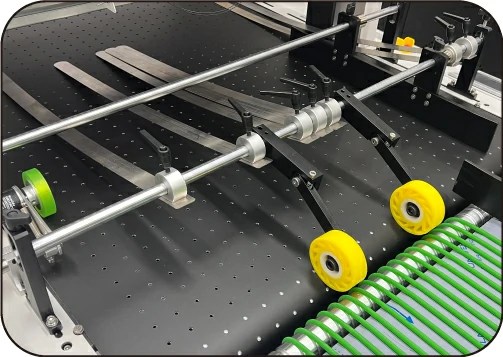

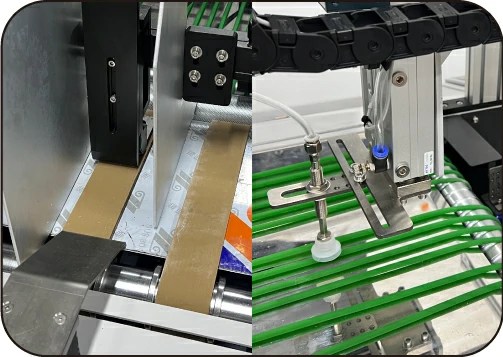

Guide baffle & pressing wheel
- Flexible side baffle to help feeding all material printed on same position
- Pressing wheel and pressing stripe to make sure material printing without scratching printhead

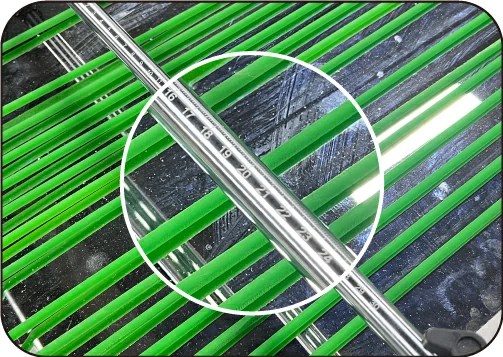

Positioning scale
- The scale is easy to adjust the position of the pressing stripe and pressing wheel to position the product.
Receiving tray option
- Optional receiving tray to count and receive materials by stack according to the required packaging quantity, saving labor costs and improving efficiency. One person can easily operate the printer.
Change Your BUSINESS
Tecnical Specifications
| Basic information | Printer name | Giftec Leopard Series Single Pass Printer |
| Printer color | Black / White | |
| Maximum printing thickness | 7.82 in. (200mm) | |
| Flatbed Type | Vacuum adsorption, auto continual conveyor | |
| Control syetem | Touch screen control panel | |
| Media Release device | Integrated friction feeder *Optional | |
| Media Take up device | Adjustable take up tray *Optional | |
| X axis adjustment | Dual leadscrews, automatic & manual adjustment | |
| Printhead quantity | 1~3pcs * HP widepage industrial printheads (bigger size customization support) | |
| Printing width(mm) | 300mm (11.81'') | |
| Machine for Material width(mm) | 600mm (23.62'') | |
| Printhead | Technology | Advanced thermal foaming bubble-inkjet technology |
| Ink drop Volume | 6PL | |
| Print head | 1~3pcs * HP widepage industrial printheads | |
| Resolution | 1200*300dpi, 1200*600dpi,1200*1200dpi | |
| Print Speed | 10-30m/min | |
| Printhead Protection Technology | Auto carriage anti-scratch kit | |
| Ink system | Ink type | Aqueous/ dye/ pigment water-based ink |
| Color Configuration of printing | Cyan(C), Magenta(M), Yellow(Y), Black(K) | |
| Ink tank | 1500ML/color | |
| Ink supply | Continual ink supply system (CISS); Intelligent constant sub-ink tank pressure | |
| Working condition | Temperature | 15℃~ 30℃ (59ºF～86ºF), Humidity 30%-70% |
| Voltage | 220V/AC(±10%), 50Hz, 1KW(Max.) | |
| Acoustic noise level | 70db(A) or less | |
| Size & weight | Printer size(L*W*H) | 1510*840*1280mm (Main printer) |
| Package size(L*W*H) | 1700*1000*1400mm (Main printer) | |
| Net Weight of printer | 200KG | |
| Gross weight | 265KG | |
| Package type | Inside foam protection, outside Ply-wood steel frame package | |
| Software system recommen-ded | Operating system | Windows® 7/10 (64 bit) Recommend |
| CPU | Intel® Core™ i5, 2.5 GHz or more | |
| HDD | Install space 1 GB or more; Working space 100 GB | |
| Processor prefered | INTEL AMD | |
| Storage | RAM>8G | |
| Data Interface | Gigabit Ethernet port |
